Application

Suitable for fan of outdoor unit of central air conditioner and similar purpose

Typical outline Dimensions

Configuration Specialty

• Internal driving. Need customer themselves to provide the power to supply DC voltage to the motor driving to achieve stepless speed.. Motor-driving integrated design.

• The structure is more compact than iron shell motor. The stator winding is sealed by BMC, with stronger waterproof and longer life, and lower noise by 2-3dB than iron shell motor.

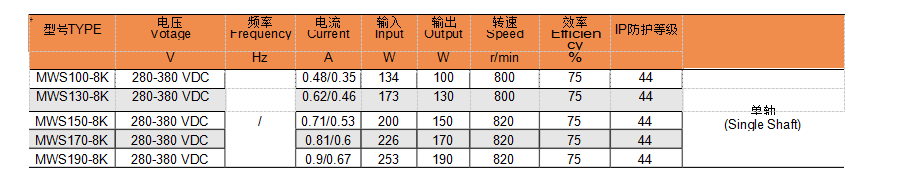

Main technical data

• Amb. Temperature ：-15～+50℃

• Store condition：-30～+60℃

• Protection Level：IP44

• Power range: 100W~190W

• Insulation class ：B

• Direction of rotation ：According to customer

requirements

 • Bearing/Mounting ：Ball/Horizontal

• Phase Current Protection

• Short Circuit Protection

• Over temperature Protection

• Position sensorless

• SVPWM Sin 180°driver
