Application

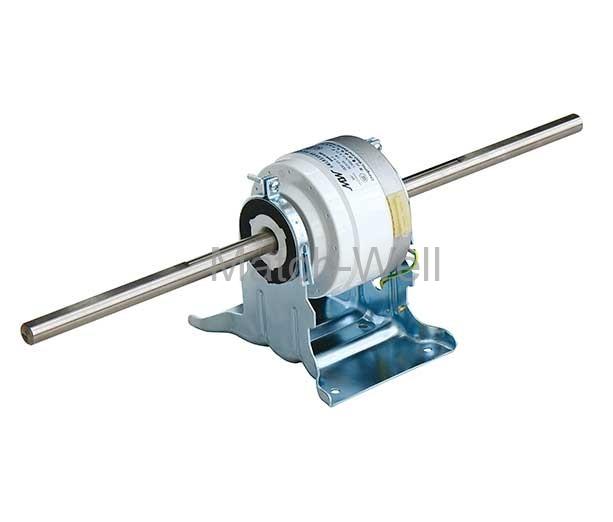

Used in fan-coil unit of central air conditioner

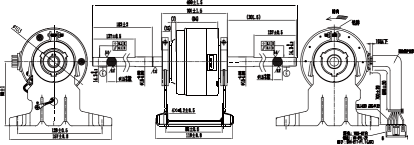

Typical outline Dimensions
Configuration
• Internal driving. Need customer themselves to provide the power to supply DC voltage to the motor driving to achieve stepless speed.. Motor-driving integrated design.
• The structure is more compact than iron shell motor. The stator winding is sealed by BMC, with stronger waterproof and longer life, and lower noise by 2-3dB than iron shell motor.
Main technical data
型号 Part No. | 电压Votage V | 频率Frequency Hz | 电流Current A | 输入Input W | 输出Output W | 转速Speed r/min | 效率 Efficiency % | IP防护等级 |
备注 |
MWS30-8K | 280-380 VDC | 0.14/0.10 | 40 | 30 | 1350 | 75 | 42 |

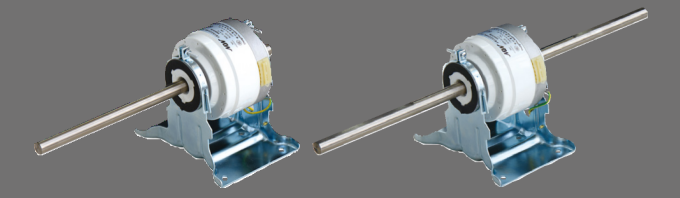

单/双轴可定制(Single/double Shaft can be customized) | |
MWS50-8K | 280-380 VDC | 0.23/0.17 | 67 | 50 | 1350 | 75 | 42 | ||
MWS70-8K | 280-380 VDC | 0.32/0.25 | 93 | 70 | 1350 | 75 | 42 | ||
MWS90-8K | 280-380 VDC | 0.42/0.32 | 120 | 90 | 1350 | 75 | 42 | ||
MWS110-8K | 280-380 VDC | 0.52/0.38 | 146 | 110 | 1350 | 75 | 42 | ||
MWS125-8K | 280-380 VDC | 0.6/0.44 | 166 | 125 | 1350 | 75 | 42 |
• Temperature Range：-15 to +50℃
• Storage Temperature Rane：-30 to +60℃
• Protection Level：IP42
• Power range: 30W~125W
• Insulation class ：B
• Direction of rotation ：According to customer
requirements
• Bearing/Mounting ：Ball/Horizontal
• Phase Current Protection
• Short Circuit Protection
• Over temperature Protection
• Position sensorless
• SVPWM Sin 180°driver
